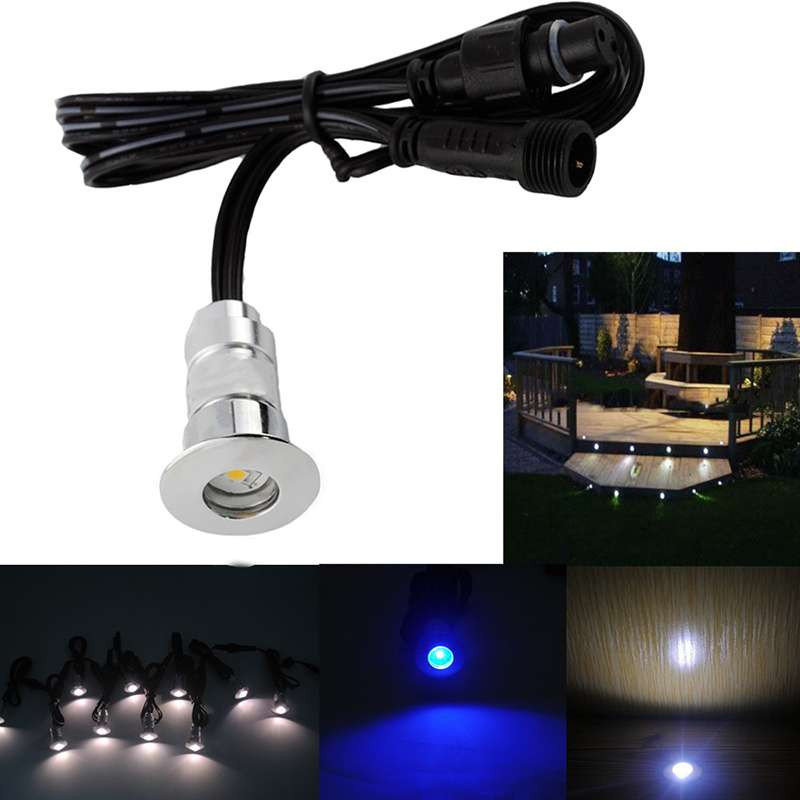

Material is aluminium body - zinc alloy head, a complete set ready to the plugin. Complete pack allowing you to plug in 6, 11, 16 and up to 56 mini LED recessed spots. If you want more mini spotlights you can contact us for a personalized quote. The power supply, cables and spots are provided and very easy to connect. No tools are required thanks to our quick and waterproof connection system. Fits into a 16mm hole (without brackets) or 18mm hole (with brackets). The fixing brackets are supplied with the spotlight. strong The largest diameter of the cable is 15mm (connector) - suitable for a 20mm sheath. strong The passage of the cable in the sheath is not compulsory except in the case of a concrete terrace or asphalt path. The spotlight by the unit is available here. Technical data of the installation The standard length between the spots is 1m If this length is not sufficient, it is possible to add extensions to space the spotlights more widely. The spotlights are equipped with three fixing brackets that allow a good hold in the hole of embedding. The spotlight has two cables of 50cm (input and output). strong A kit of 6 spots contains a power supply 8W, 6 spots and 5 extensions 1m. strong In case of hesitation, you can contact us via the contact page of the site. We will come back to you either by mail or phone to find the best solution to realize your project. Tailor-made solutions The mini spotlights are available in warm white light (2700K), daylight (6000K), blue, green or red. According to your convenience, it is possible to mix the colours (contact us to give us the details of what you want). All the elements (spots, power supply and cable) and the quick connection system are waterproof and can be installed outdoors or indoors. LED spot embedding diagram, width= 600, height= 381. Installation of the spotlight kit All the components: waterproof power supply, quick connection cables, LED spots are provided and can be plugged in a waterproof way and without tools. The kit allows spacing of 1m between spots (if necessary it is possible to add extensions to increase this spacing). LED spotlight embedding diagram, width=1210, height=717. Examples of use: Path marking, decoration (composite, wood, concrete, tiles....). Enhancing a flower bed lighting a staircase (indoor or outdoor). Creating light points around a pool... Option: Radio Frequency Remote Control If you want to be able to turn on, turn off or vary the intensity of the spotlights remotely, you can add the Radio Frequency Remote Control option. The range of the remote control is 20m.
