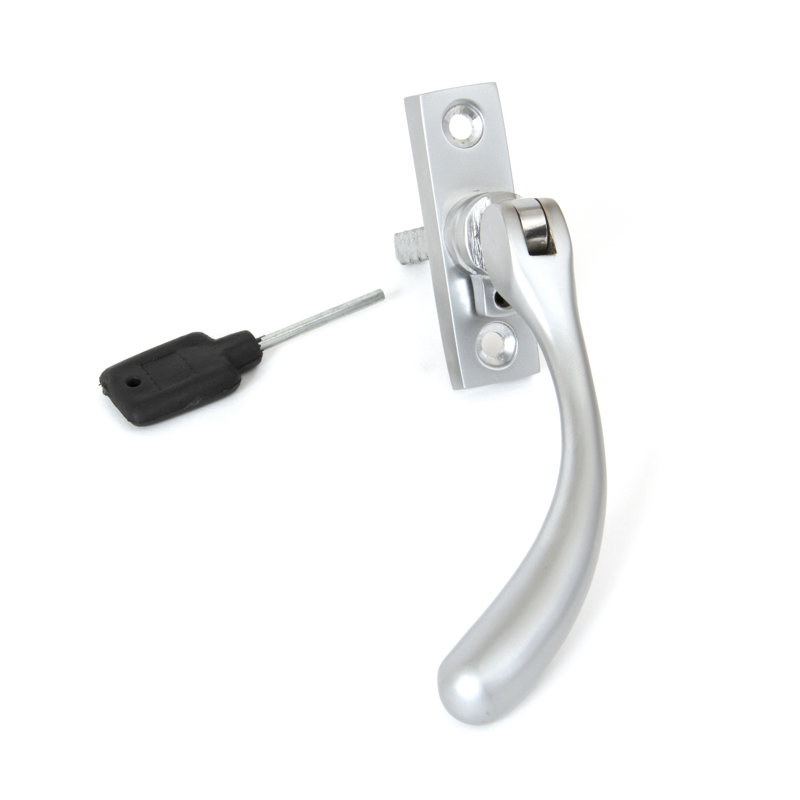

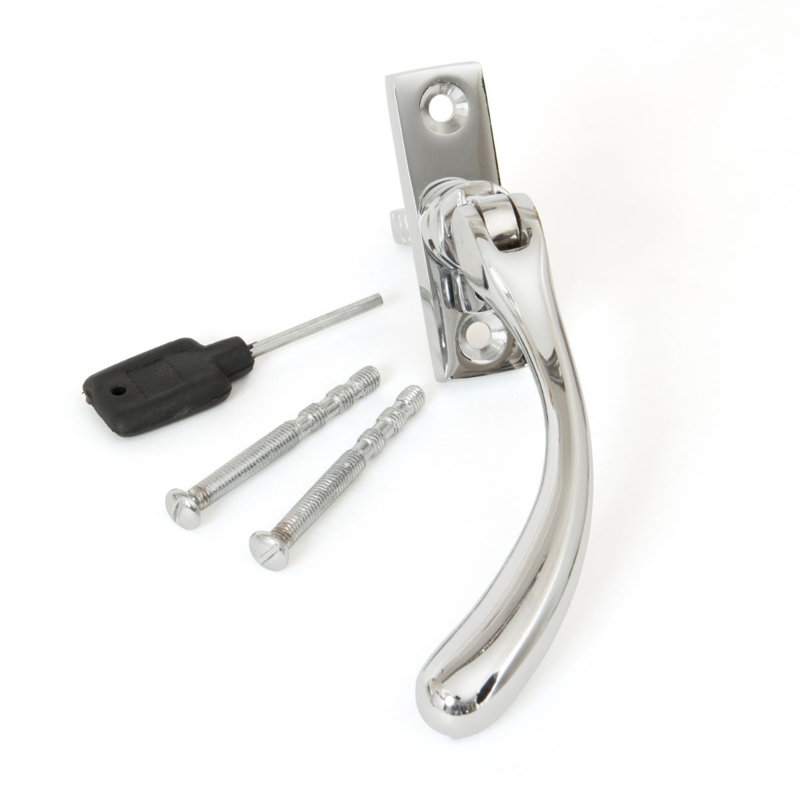

Our range of peardrop espagnolette fasteners are simple in design and offer a traditional looking product with the benefits of a modern and secure configuration.
What's Included?
Handle(s)
Not Included:
Lock
Features
Overall Length: 124mm Handle Length 104mm Fixing Plate: 60mm x 18mm x 7mm
Designed to fit any type of window including uPVC and timber. Can be matched with the peardrop stays in the range.
The handle is hinged to ensure it can be lifted away from the window for ease of use.
The product is handed and therefore care needs to be taken when choosing the correct hand. From the inside view, if your window is hinged on the left then a left-hand fastener is required.
They have a 7mm² x 38mm spindle and can be locked by way of a grub screw.
Can be used with an espagnolette gearbox & window lock.
Supplied with matching SS M5 screws.
Other Dimensions
Overall Dimensions
12.4cm H X 1.8cm W X 5.6cm D
Overall Product Weight
0.17kg
Details
Material
Brass
Compatible Door Type
Interior, Exterior
Outdoor Use
Yes
Durability
No Durability Features
Handle Finish
Polished Chrome
Finish
Polished Chrome
Pieces Included
Handle(s)
Handle Orientation
Left
Assembly
Assembly Required
Yes
Mounting / Installation Required
Yes
Number of Mounting Holes
2
Warranty
Commercial Warranty
No
