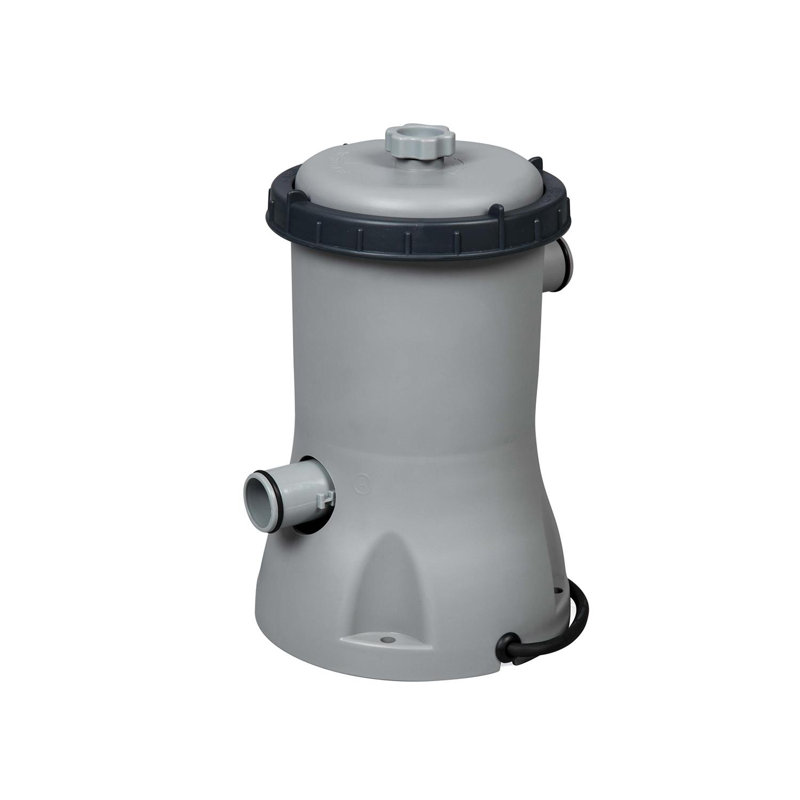

Flowclear Filter Pump Swimming Pool

Features

• Filter pump, an ideal choice for pools, up to 15 ft in diameter with 32 mm screw fittings
• Integrated pool system, system flow rate 2006 litres per hour (530 gallons per hour)
• Water flow rate, 530 gallons per hour, suitable for 1100-14300L pools
• CE approved, please note this item has a UK plug. The set includes two hoses with 32 mm fittings.
• Keep your pool clean and filter debris, no need to keep replacing pool water
• Do not permit children to use this product unless they are closely supervised at all times. The pump cannot be used while people are inside the pool. When working with electricity, turn the electrical power off at the circuit breaker and lock the breaker door. Failure to do so will result in an increased risk of shock, injury and possibly death. To reduce the risk of electric shock. If the filter pump power cord becomes damaged in any way, the pump must be discarded. Using the pump with an unmatched electrical supply is dangerous and will result in catastrophic failure of the pump. Place pump on solid and level ground. Pay attention to the position of the pool and pump so adequate ventilation, drainage, and access for cleaning are available. Never place a pump in an area that may accumulate water, or in an area where foot traffic will flow around the pool. It is necessary to have the plug accessible after the installation of the pool. Store the filter pump in a dry location out of the child’s reach.  Do not run the pump for more than 8 hours per day. Do not add chemicals to the filter pump.
• Part I: internal filter pump inspection, remove the filter cap by unscrewing the filter cap retainer. Inspect the filter cartridge ensuring it is centred in the filter pump. After inspection, check that the filter cap seal is in place, replace the filter cap and screw the filter cap retainer into position. Part II: attach the hoses to the filter pump and the pool:  place the loose hose clamps on both ends of the hoses. Attach the hoses to the corresponding letters on both the pool and the filter pump (a to a, b to b). Tighten the hose clamps to the filter pump by screwing the fly nut clockwise. Remove the stopper plugs from the pool’s inlet and outlet valves and insert the debris screens. With the hoses and the debris screens in position, tighten the hose clamps. Part III: preparing the system for use, open/unscrew the air purge valve on the top of the filter pump. The air is released as water fills the filter pump. When water comes out of the air purge valve screw it closed and wipe away any water. To start the filter pump, insert the plug of the filter pump into a residual current device (RCD).
